Icom IC-V88 VHF FM Handheld Transceivers

PRODUCT HIGHLIGHTS:
SUITABLE FOR DRRM's, BARANGAY SECURITY, DISPATCHES, SECURITY AGENCIES, UTILITY, AMATEUR RADIO, LAND MOBILE, CIVIC ACTION, COMMERCIAL.
Compact, Waterproof Professional Radio
with 1500 mW Powerful Audio
Icom custom high power handling capacity speaker for 1500 mW powerful audio

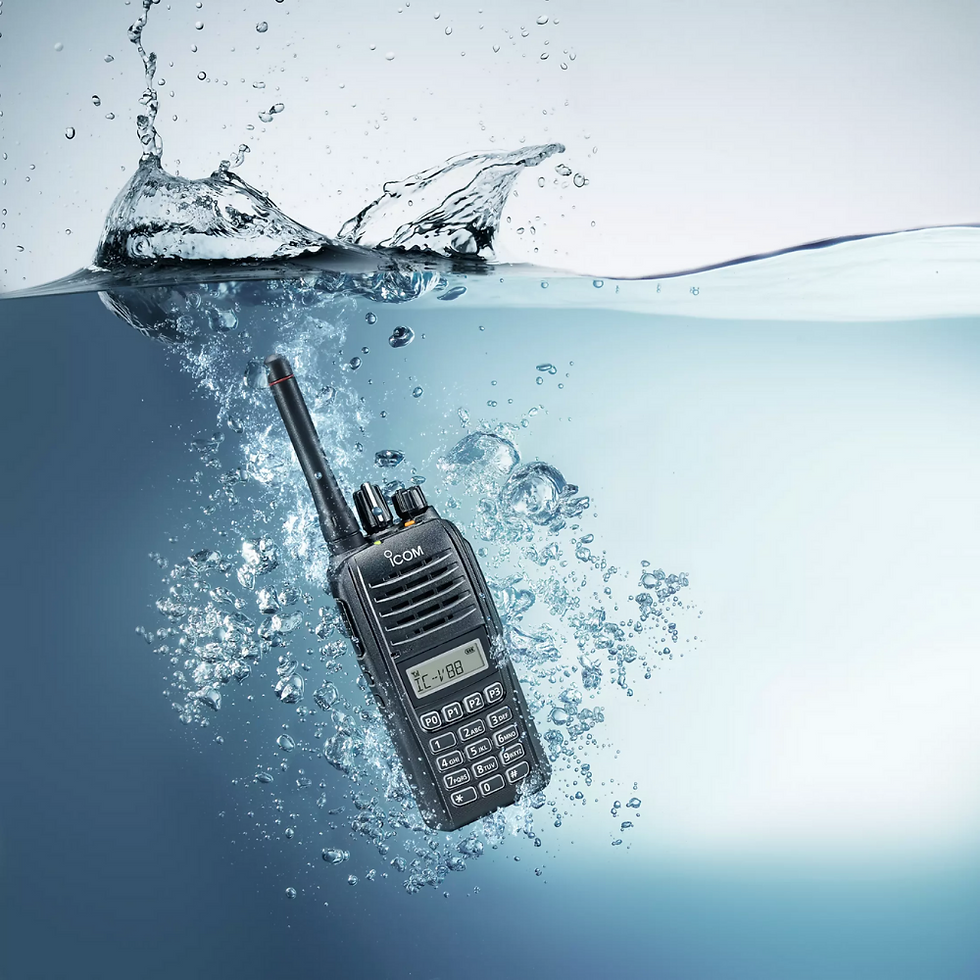

IP67 waterproof and dust-tight protection
5.5 W/4 W (VHF/UHF) of output power
Up to 10 hours of operating time with the supplied waterproof battery or more than 20 hours with optional battery pack
128 memory channels and eight zones
Eight character alphanumeric display
Built-in CTCSS and DTCS encoder/decoder
Eight DTMF autodial memories
MDC 1200 PTT ID and BIIS 1200 PTT ID
Inversion voice scrambler (16 code) for private conversations
Channel announcement of the operating channel number
Seven programmable buttons with Shift key function
16 scan lists and priority scan functions
Hands-free operation with the optional headset

SPECIFICATIONS:
Frequency coverage: VHF 136MHz–174MHz
Type of emission: 16K0F3E, 11K0F3E (25/12.5kHz)
Number of channels: 128 channels
Antenna impedance: 50Ω
Power supply requirement: 7.5V DC
Operating temperature range: −30°C to +60°C (Radio only)
Frequency stability: ±2.5ppm
Current drain(approx.): Tx High    1.5A  Rx Max. audio/Stand-by 500 mA (Internal SP) /77mA
Dimensions (W×H×D)(Projections not included): 52.2×111.8×22.3 mm (with BP-278)
Weight: 230g (with BP-278)

TRANSMITTER:
Output power (at 7.5V): 5.5/2.0/1.0W (Hi/L2/L1)
Max. frequency deviation: ±5.0kHz/±2.5kHz (Wide/Narrow)
Spurious emissions: 70dB min.
Ext. microphone connector: 3-conductor 2.5(d)mm (1/10″)/2.2kΩ

RECEIVER:
Sensitivity: 0.25μV typ. (at 12dB SINAD)
Squelch sensitivity: 0.25μV typ. (at threshold)
Adjacent channel selectivity: 76dB/53dB typ. (Wide/Narrow)
Intermodulation: 74dB typ.
Spurious response: 70dB min.
Audio output power: Internal SP    1500 mW typ. (8Ω load)
                                           External SP    400 mW typ. (8Ω load)
External speaker connector: 3-conductor 3.5(d)mm (1/8″)/8Ω

PACKAGE INCLUSIONS:
1x Unit
1x Battery
1x Antenna
1x Desktop Charger
1x Belt Clip
1x Manual

WARRANTY:
7 days replacement
1-year for parts and service
