Icom ICA120 Air Band Mobile Base Radio

PRODUCT HIGHLIGHTS:
High visibility, simple operation
Optional bluetooth® headset connectivity
Active Noise Cancelling (ANC)
IP54 Dust-Protection and Water Resistance
Dualwatch and ON-Hook Scan Functions
Side Tone Function
Optional Speaker-Microphone, HM-217

SPECIFICATIONS:
Frequency range (TX/RX): 118.000–136.992 MHz
Channel spacing: 25 kHz/8.33 kHz
Type of emission: 6K00A3E, 5K60A3E (FCC/EXP)  6K00A3E (Industry Canada)
Operating temperature range: –30˚C to +60˚C; –22˚F to +140˚F
Frequency stability: ±5 ppm (–30˚C to +60˚C)
Antenna connector: SO-239 (50 Ω)
Number of memory channels: 200 channels
Power supply requirements: 13.75 V/27.5 V DC
Current drain (at 13.75 V): TX 5.0 A (maximum)
                                                     RX Stand-by    0.5 A
                                                     Max. audio 4.0 A
Dimensions (W×H×D)(Projections are not included): 161×45×175mm
                                                                                                           6.34×1.77×6.89 (in) (approximately)
Weight (approximately): 1.5kg; 3.3lb (main unit)

TRANSMITTER:
Output power (at 13.75 V)(Carrier Power): 9.0W typical 10.0W maximum
Spurious emissions: Less than –60 dBc
Modulation: 70% to 100%
Microphone impedance: 600 Ω

RECEIVER:
Intermediate frequencies: 38.85MHz/450kHz (1st/2nd)
Sensitivity (at 6 dB S/N): Less than 1μV
Selectivity:8.33 kHz 2.778/7.37kHz (6dB/60dB)
                       25 kHz 8/25kHz (6dB/60dB)
Spurious response rejection: More than 74dBμ
Audio output power(at 10% distortion,60% modulation):
Internal SP(8 Ω load) 1.5 W typical
External SP(8 Ω load) More than 10 W
Headphone (500 Ω load) More than 100 mW

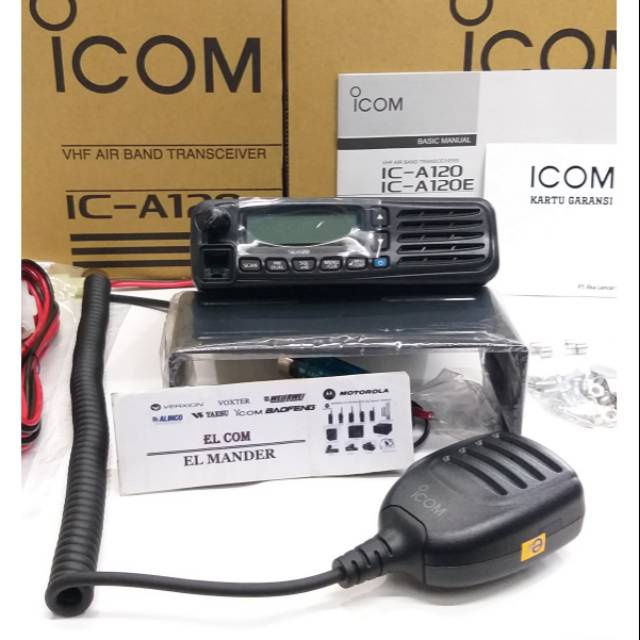

PRODUCT INCLUSIONS:
1x Unit
1x Microphone
1x DC power cable
1x Mounting bracket kit
1x Microphone hanger kit
1x Fuse

WARRANTY:
7 days replacement
1-year for parts and service

SHIPPING:
-Shipping time takes 3 to 6 days for Luzon and 6 to 12 days for Vizmin.
-Our company does not have control over the shipments after we handed over the shipments. We can only track the shipment status through their website tracking page.
